Model：QJF326
Old Model：
Brand：FM
Type：Angular Contact Ball Bearing
d：130
D：280
B：58
TEL：86-15961781062 Online Service
| Principal dimensions (mm) | |
| d | 130 |
| D | 280 |
| B | 58 |
| r 1,2 min | 4.0 |
| Load ratings (kN) | |
| Cr | 423.0 |
| Cor | 560.0 |
| Limiting Speed (r/min) | |
| Grease | 1800 |
| Oil | 2600 |
| Designation | |
| Designation | QJF326 |

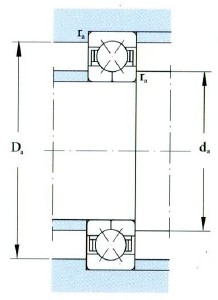

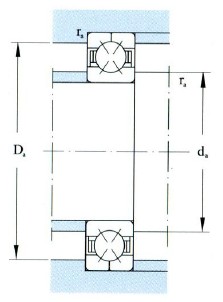

| Fitting dimansion mm | |
| d a max | 148 |
| D a max | 262 |
| r a max | 3.0 |
| a | |
| a | 144 |
| Weight(Kg) | |
| Designation | 19.60 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-QJF326-Angular Contact Ball Bearing，Relevant information of FM-QJF326-Angular Contact Ball Bearing includes： Designation: QJF326 d:130 D:280 B:58 Brand:FM Type:Angular Contact Ball Bearing ，Want to know more about FM-QJF326-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-QJF326-Angular Contact Ball Bearing is widely used.FM-QJF326-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-QJF326-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
