Model：4938X3DM/W34
Old Model：
Brand：FM
Type：Angular Contact Ball Bearing
d：190
D：269.5
B：66
TEL：86-15961781062 Online Service

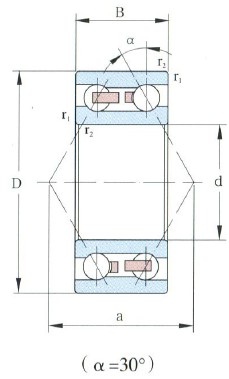

| Principal dimensions (mm) | |
| d | 190 |
| D | 269.5 |
| B | 66 |
| r 1,2 min | 2.1 |
| Load ratings (kN) | |
| Cr | 169 |
| Cor | 324 |
| Limiting Speed (r/min) | |
| Grease | 1350 |
| Oil | 1700 |
| Designation | |
| Designation | 4938X3DM/W34 |

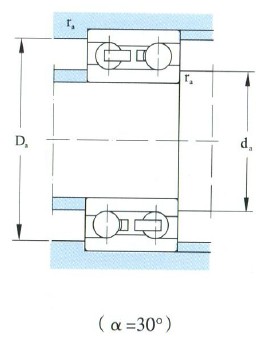

| Fitting dimansion mm | |
| d a max | 202 |
| D a max | 258 |
| r a max | 2 |
| a | |
| a | 263.6 |
| Weight(Kg) | |
| Designation | 11.5 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-4938X3DM/W34-Angular Contact Ball Bearing，Relevant information of FM-4938X3DM/W34-Angular Contact Ball Bearing includes： Designation: 4938X3DM/W34 d:190 D:269.5 B:66 Brand:FM Type:Angular Contact Ball Bearing ，Want to know more about FM-4938X3DM/W34-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-4938X3DM/W34-Angular Contact Ball Bearing is widely used.FM-4938X3DM/W34-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-4938X3DM/W34-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
