Model：7248B
Old Model：
Brand：FM
Type：Angular Contact Ball Bearing
d：240
D：440
B：72
TEL：86-15961781062 Online Service
| Principal dimensions (mm) | |
| d | 240 |
| D | 440 |
| B | 72 |
| r 1,2 min | 4.0 |
| r 3,4 min | 1.5 |
| Load ratings (kN) | |
| Cr | 322.0 |
| Cor | 626.0 |
| Limiting Speed (r/min) | |
| Grease | 1000 |
| Oil | 1500 |
| Designation | |
| DB | |
| DF | |
| DT | |
| Designation | 7248B |

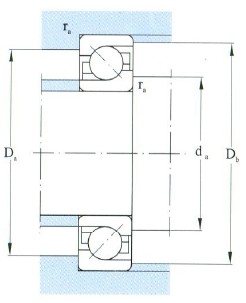

| Fitting dimansion mm | |
| d a min | 258 |
| D a max | 411 |
| D b max | |
| r a max | 3.0 |
| r b max | |
| Basic load ratings Combinaton (kn) | |
| Cr | |
| Cor | |
| Speed ratings Combination (r/min) | |
| Grease | |
| Oil | |
| a (mm) | |
| a (mm) | 178.5 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 50.9000 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-7248B-Angular Contact Ball Bearing，Relevant information of FM-7248B-Angular Contact Ball Bearing includes： Designation: 7248B d:240 D:440 B:72 Brand:FM Type:Angular Contact Ball Bearing ，Want to know more about FM-7248B-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-7248B-Angular Contact Ball Bearing is widely used.FM-7248B-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-7248B-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
