Model：71957Y
Old Model：
Brand：FM
Type：Angular Contact Ball Bearing
d：285
D：380
B：46
TEL：86-15961781062 Online Service

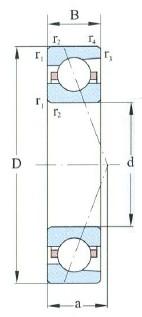

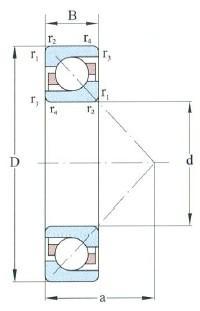

| Principal dimensions (mm) | |
| d | 285 |
| D | 380 |
| B | 46 |
| r 1,2 min | 2.1 |
| r 3,4 min | 1.1 |
| Load ratings (kN) | |
| Cr | 188.0 |
| Cor | 366.0 |
| Limiting Speed (r/min) | |
| Grease | 800 |
| Oil | 1300 |
| Designation | |
| DB | |
| DF | |
| DT | |
| Designation | 71957Y |

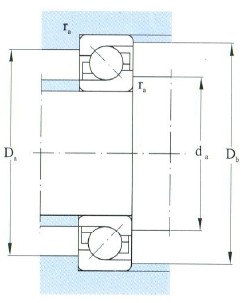

| Fitting dimansion mm | |
| d a min | 297 |
| D a max | 368 |
| D b max | |
| r a max | 2.0 |
| r b max | |
| Basic load ratings Combinaton (kn) | |
| Cr | |
| Cor | |
| Speed ratings Combination (r/min) | |
| Grease | |
| Oil | |
| a (mm) | |
| a (mm) | 119.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 14.7 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-71957Y-Angular Contact Ball Bearing，Relevant information of FM-71957Y-Angular Contact Ball Bearing includes： Designation: 71957Y d:285 D:380 B:46 Brand:FM Type:Angular Contact Ball Bearing ，Want to know more about FM-71957Y-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-71957Y-Angular Contact Ball Bearing is widely used.FM-71957Y-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-71957Y-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
