Model：7036CTA/DB
Old Model：
Brand：FM
Type：Angular Contact Ball Bearing
d：180
D：280
B：46
TEL：86-15961781062 Online Service

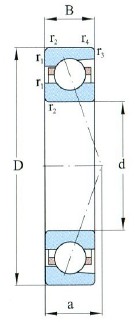

| Principal dimensions (mm) | |
| d | 180 |
| D | 280 |
| B | 46 |
| r 1,2 min | 2.1 |
| r 3,4 min | 1.10 |
| Load ratings (kN) | |
| Cr | 242.00 |
| Cor | 290.00 |
| Limiting Speed (r/min) | |
| Grease | 5000 |
| Oil | 7500 |
| Designation | |
| DB | 7036CTA/DB |
| DF | 7036CTA/DF |
| DT | 7036CTA/DT |
| Designation | 7036CTA |
| Fitting dimansion mm | |
| d a min | 192.0 |
| D a max | 268.0 |
| D b max | 253.0 |
| r a max | 2.0 |
| r b max | 1.00 |
| Basic load ratings Combinaton (kn) | |
| Cr | 393.00 |
| Cor | 580.00 |
| Speed ratings Combination (r/min) | |
| Grease | 4000 |
| Oil | 6000 |
| a (mm) | |
| a (mm) | 54.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 8.900 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-7036CTA/DB-Angular Contact Ball Bearing，Relevant information of FM-7036CTA/DB-Angular Contact Ball Bearing includes： Designation: 7036CTA/DB d:180 D:280 B:46 Brand:FM Type:Angular Contact Ball Bearing ，Want to know more about FM-7036CTA/DB-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-7036CTA/DB-Angular Contact Ball Bearing is widely used.FM-7036CTA/DB-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-7036CTA/DB-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
