Model：M84249/M84210
Old Model：
Brand：FM
Type：Tapered Roller Bearing
d：25.400
D：59.530
B：23.114
TEL：86-15961781062 Online Service

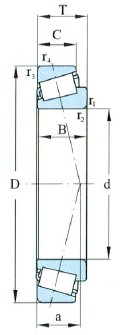

| Dimansion mm | |
| d | 25.400 |
| D | 59.530 |
| T | 23.368 |
| B | 23.114 |
| C | 18.288 |
| r 1,2 min | 0.8 |
| r 3,4 min | 1.5 |
| Load ratings kN | |
| Cr | 49.1 |
| Cor | 57.3 |
| Weight(Kg) | |
| Weight(Kg) | 0.3300 |
| Limiting Speed r/min | |
| Grease | 6300 |
| Oil | 9000 |

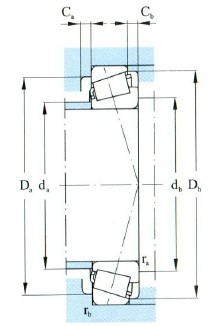

| Fitting dimansion mm | |
| d a max | 32.5 |
| d b max | 36.0 |
| D a max | 51.0 |
| D a min | 48.0 |
| D b min | 56.0 |
| C a min | 3.0 |
| C b min | 4.0 |
| r a max | 0.5 |
| r b max | 1.0 |
| Calculation coefficient | |
| e | 0.55 |
| Y | 1.10 |
| Yo | 0.60 |
| a mm | |
| a | 18 |
| Designation Assembles/Outer Ring | |
| Designation Assembles/Outer Ring | M84249/M84210 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-M84249/M84210-Tapered Roller Bearing，Relevant information of FM-M84249/M84210-Tapered Roller Bearing includes： Designation: M84249/M84210 d:25.400 D:59.530 B:23.114 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-M84249/M84210-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-M84249/M84210-Tapered Roller Bearing is widely used.FM-M84249/M84210-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-M84249/M84210-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
