Model：32208
Old Model：
Brand：FM
Type：Tapered Roller Bearing
d：40
D：80
B：23.0
TEL：86-15961781062 Online Service
| Dimansion mm | |
| d | 40 |
| D | 80 |
| T | 24.75 |
| B | 23.0 |
| C | 19.0 |
| r 1,2 min | 1.5 |
| r 3,4 min | 1.5 |
| Load ratings kN | |
| Cr | 76.8 |
| Cor | 94.7 |
| Designation | |
| Designation | 32208 |
| Weight(Kg) | |
| Weight(Kg) | 0.5410 |
| Limiting Speed r/min | |
| Grease | 4800 |
| Oil | 6300 |

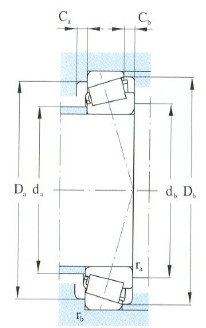

| Fitting dimansion mm | |
| d a max | 49.0 |
| d b max | 47 |
| D a max | 73 |
| D a min | 68 |
| D b min | 75.0 |
| C a min | 3 |
| C b min | 5.5 |
| r a max | 1.0 |
| r b max | 1.0 |
| Calculation coefficient | |
| e | 0.37 |
| Y | 1.60 |
| Yo | 0.900 |
| a mm | |
| a | 19 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 3DC |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-32208-Tapered Roller Bearing，Relevant information of FM-32208-Tapered Roller Bearing includes： Designation: 32208 d:40 D:80 B:23.0 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-32208-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-32208-Tapered Roller Bearing is widely used.FM-32208-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-32208-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
