Model：26877/26822
Old Model：
Brand：FM
Type：Tapered Roller Bearing
d：36.512
D：79.375
B：25.400
TEL：86-15961781062 Online Service
| Dimansion mm | |
| d | 36.512 |
| D | 79.375 |
| T | 23.812 |
| B | 25.400 |
| C | 19.050 |
| r 1,2 min | 0.8 |
| r 3,4 min | 0.8 |
| Load ratings kN | |
| Cr | 77.7 |
| Cor | 96.6 |
| Weight(Kg) | |
| Weight(Kg) | 0.5500 |
| Limiting Speed r/min | |
| Grease | 4800 |
| Oil | 6300 |

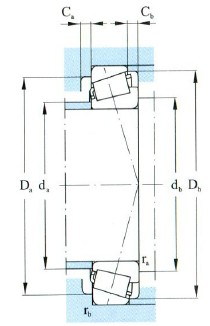

| Fitting dimansion mm | |
| d a max | 43.0 |
| d b max | 44.0 |
| D a max | 71.0 |
| D a min | 70.0 |
| D b min | 74.0 |
| C a min | 4.0 |
| C b min | 5.0 |
| r a max | 0.8 |
| r b max | 0.8 |
| Calculation coefficient | |
| e | 0.32 |
| Y | 1.90 |
| Yo | 1.00 |
| a mm | |
| a | 17 |
| Designation Assembles/Outer Ring | |
| Designation Assembles/Outer Ring | 26877/26822 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-26877/26822-Tapered Roller Bearing，Relevant information of FM-26877/26822-Tapered Roller Bearing includes： Designation: 26877/26822 d:36.512 D:79.375 B:25.400 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-26877/26822-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-26877/26822-Tapered Roller Bearing is widely used.FM-26877/26822-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-26877/26822-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
