Model：33113X2
Old Model：
Brand：FM
Type：Tapered Roller Bearing
d：65
D：110
B：30.0
TEL：86-15961781062 Online Service

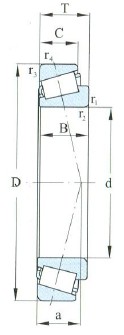

| Dimansion mm | |
| d | 65 |
| D | 110 |
| T | 30.50 |
| B | 30.0 |
| C | 24.0 |
| r 1,2 min | 3.0 |
| r 3,4 min | 1.8 |
| Load ratings kN | |
| Cr | 104 |
| Cor | 166 |
| Designation | |
| Designation | 33113X2 |
| Weight(Kg) | |
| Weight(Kg) | 1.170 |
| Limiting Speed r/min | |
| Grease | 3200 |
| Oil | 4300 |

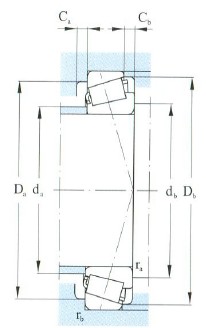

| Fitting dimansion mm | |
| d a max | 75.0 |
| d b max | 77 |
| D a max | 110 |
| D a min | 93 |
| D b min | 105 |
| C a min | 3.5 |
| C b min | 6.2 |
| r a max | --- |
| r b max | --- |
| Calculation coefficient | |
| e | 0.39 |
| Y | 1.60 |
| Yo | 0.850 |
| a mm | |
| a | 25 |
| ISO355 Dimensions | |
| ISO355 Dimensions | --- |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-33113X2-Tapered Roller Bearing，Relevant information of FM-33113X2-Tapered Roller Bearing includes： Designation: 33113X2 d:65 D:110 B:30.0 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-33113X2-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-33113X2-Tapered Roller Bearing is widely used.FM-33113X2-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-33113X2-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
