Model：26881/26823
Old Model：
Brand：FM
Type：Tapered Roller Bearing
d：39.688
D：76.200
B：25.400
TEL：86-15961781062 Online Service
| Dimansion mm | |
| d | 39.688 |
| D | 76.200 |
| T | 25.400 |
| B | 25.400 |
| C | 20.638 |
| r 1,2 min | 3.5 |
| r 3,4 min | 1.5 |
| Load ratings kN | |
| Cr | 77.7 |
| Cor | 96.6 |
| Weight(Kg) | |
| Weight(Kg) | 0.5060 |
| Limiting Speed r/min | |
| Grease | 4800 |
| Oil | 6400 |

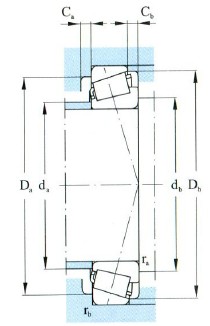

| Fitting dimansion mm | |
| d a max | 45.5 |
| d b max | 52.0 |
| D a max | 68.0 |
| D a min | 69.0 |
| D b min | 71.0 |
| C a min | 3.0 |
| C b min | 3.5 |
| r a max | 3.0 |
| r b max | 0.8 |
| Calculation coefficient | |
| e | 0.32 |
| Y | 1.88 |
| Yo | 1.04 |
| a mm | |
| a | 20 |
| Designation Assembles/Outer Ring | |
| Designation Assembles/Outer Ring | 26881/26823 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-26881/26823-Tapered Roller Bearing，Relevant information of FM-26881/26823-Tapered Roller Bearing includes： Designation: 26881/26823 d:39.688 D:76.200 B:25.400 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-26881/26823-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-26881/26823-Tapered Roller Bearing is widely used.FM-26881/26823-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-26881/26823-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
