Model：33019
Old Model：
Brand：FM
Type：Tapered Roller Bearing
d：95
D：145
B：39.0
TEL：86-15961781062 Online Service

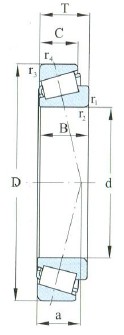

| Dimansion mm | |
| d | 95 |
| D | 145 |
| T | 39.00 |
| B | 39.0 |
| C | 32.5 |
| r 1,2 min | 2.0 |
| r 3,4 min | 1.5 |
| Load ratings kN | |
| Cr | 212 |
| Cor | 370 |
| Designation | |
| Designation | 33019 |
| Weight(Kg) | |
| Weight(Kg) | 2.3000 |
| Limiting Speed r/min | |
| Grease | 2200 |
| Oil | 3200 |

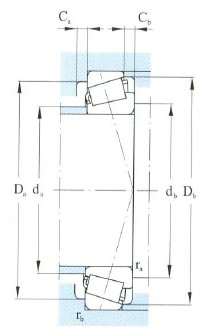

| Fitting dimansion mm | |
| d a max | 104.0 |
| d b max | 104 |
| D a max | 131 |
| D a min | 136 |
| D b min | 139.0 |
| C a min | 7 |
| C b min | 6.5 |
| r a max | 1.5 |
| r b max | 1.5 |
| Calculation coefficient | |
| e | 0.28 |
| Y | 2.10 |
| Yo | 1.100 |
| a mm | |
| a | 28 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 2CE |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-33019-Tapered Roller Bearing，Relevant information of FM-33019-Tapered Roller Bearing includes： Designation: 33019 d:95 D:145 B:39.0 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-33019-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-33019-Tapered Roller Bearing is widely used.FM-33019-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-33019-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
