Model：HM212047/HM212011
Old Model：
Brand：FM
Type：Tapered Roller Bearing
d：63.500
D：122.238
B：38.354
TEL：86-15961781062 Online Service

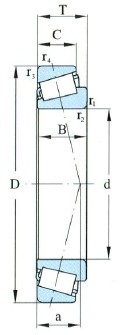

| Dimansion mm | |
| d | 63.500 |
| D | 122.238 |
| T | 38.100 |
| B | 38.354 |
| C | 29.718 |
| r 1,2 min | 7.0 |
| r 3,4 min | 3.3 |
| Load ratings kN | |
| Cr | 180 |
| Cor | 246 |
| Weight(Kg) | |
| Weight(Kg) | 2.0100 |
| Limiting Speed r/min | |
| Grease | 3000 |
| Oil | 4000 |

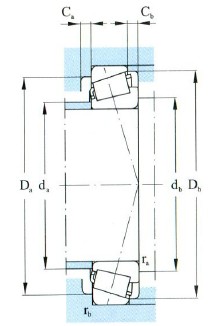

| Fitting dimansion mm | |
| d a max | 73.0 |
| d b max | 87.0 |
| D a max | 108.0 |
| D a min | 105.0 |
| D b min | 116.0 |
| C a min | 6.0 |
| C b min | 8.0 |
| r a max | 7.0 |
| r b max | 3.3 |
| Calculation coefficient | |
| e | 0.34 |
| Y | 1.80 |
| Yo | 0.98 |
| a mm | |
| a | 27 |
| Designation Assembles/Outer Ring | |
| Designation Assembles/Outer Ring | HM212047/HM212011 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-HM212047/HM212011-Tapered Roller Bearing，Relevant information of FM-HM212047/HM212011-Tapered Roller Bearing includes： Designation: HM212047/HM212011 d:63.500 D:122.238 B:38.354 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-HM212047/HM212011-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-HM212047/HM212011-Tapered Roller Bearing is widely used.FM-HM212047/HM212011-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-HM212047/HM212011-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
