Model：48286/48220B
Old Model：
Brand：FM
Type：Tapered Roller Bearing
d：123.825
D：182.562
B：38.1
TEL：86-15961781062 Online Service

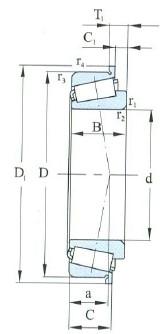

| Dimansion mm | |
| d | 123.825 |
| D | 182.562 |
| T 1 | 12.7 |
| B | 38.1 |
| C | 33.338 |
| C 1 | 6.35 |
| D 1 | 188.811 |
| r 1,2 min | 3.5 |
| r 3,4 min | 3.3 |
| Load ratings kN | |
| Cr | 224 |
| Cor | 435 |
| Weight(Kg) | |
| Weight(kg) | 3.55 |
| Limiting Speed r/min | |
| Grease | 1700 |
| Oil | 2400 |
| Designation Assembles/Outer Ring | |
| Designation Assembles/Outer Ring | 48286/48220B |
| a mm | |
| a mm | 34 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-48286/48220B-Tapered Roller Bearing，Relevant information of FM-48286/48220B-Tapered Roller Bearing includes： Designation: 48286/48220B d:123.825 D:182.562 B:38.1 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-48286/48220B-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-48286/48220B-Tapered Roller Bearing is widely used.FM-48286/48220B-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-48286/48220B-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
