Model：LB304768OPTN
Old Model：
Brand：FM
Type：Linear motion ball bearing
d：30
D：47
B：52.1
TEL：86-15961781062 Online Service
| Designation | |
| HRB | ZXt304768KA |
| International No. | LB304768OPTN |

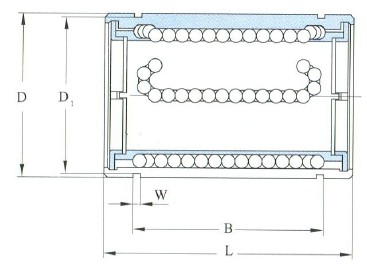

| Principal dimensions (mm) Tolerance(μm) | |
| d Nominal | 30 |
| d Tolerance | +11 -1 |
| D Nominal | 47 |
| D Tolerance | 0 -11 |
| L Nominal | 68 |
| L Tolerance | 0 -300 |
| B Nominal | 52.1 |
| B Tolerance | 0 -300 |
| W | 1.85 |
| D 1 | 44.5 |
| h | |
| h 1 | 12.5 |
| θ | 50° |
| Radial swing (μm) | |
| max | 25 |
| Dynamic load rating (N) C | |
| min | 1274 |
| max | 1666 |
| Static load rating (N) C | |
| min | 2156 |
| max | 2744 |
| Row | |
| Row | 5 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-LB304768OPTN-Linear motion ball bearing，Relevant information of FM-LB304768OPTN-Linear motion ball bearing includes： Designation: LB304768OPTN d:30 D:47 B:52.1 Brand:FM Type:Linear motion ball bearing ，Want to know more about FM-LB304768OPTN-Linear motion ball bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-LB304768OPTN-Linear motion ball bearing is widely used.FM-LB304768OPTN-Linear motion ball bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-LB304768OPTN-Linear motion ball bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
