Model：WS81210
Old Model：
Brand：FM
Type：Thrust Cylindrical Roller Bearing
d：50
D：78
B：22
TEL：86-15961781062 Online Service
| Principal dimensions mm | |
| d | 50 |
| D | 78 |
| T | 22 |
| Dimansion mm | |
| d 1 | 78 |
| D 1 | 52 |
| D w | 9 |
| B | 6.5 |
| r 1,2min | 1 |
| Basic load ratings kN | |
| Cr | 91.5 |
| Cor | 300 |
| Mini Load Factor | |
| A | 7.2 |
| Limiting Speed rpm | |
| Grease | 1200 |
| Oil | 1700 |
| Designation | |

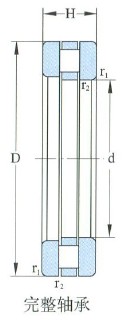

| Complete Bearing | 81210 |

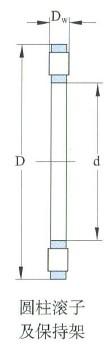

| Rollers and Cages | K81210 |
| Shaft Washer | WS81210 |

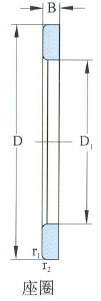

| Housing Washer | GS81210 |
| Fitting dimansion mm | |
| d amin | 75 |
| D amax | 53 |
| r amax | 1 |
| Weight kg | |
| Weight kg | 0.36 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-WS81210-Thrust Cylindrical Roller Bearing，Relevant information of FM-WS81210-Thrust Cylindrical Roller Bearing includes： Designation: WS81210 d:50 D:78 B:22 Brand:FM Type:Thrust Cylindrical Roller Bearing ，Want to know more about FM-WS81210-Thrust Cylindrical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-WS81210-Thrust Cylindrical Roller Bearing is widely used.FM-WS81210-Thrust Cylindrical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-WS81210-Thrust Cylindrical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
