Model：SP120
Old Model：
Brand：SKF
Type：Deep Groove Ball Bearing
d：65
D：120
B：23
TEL：86-15961781062 Online Service
| Dimansion mm | |
| d | 65 |
| d1 ～ | 83.3 |
| D1 ～ | 106 |
| D3 | 115.21 |
| D4 | 129.7 |
| b | 3.1 |
| f | 2.82 |
| C | 4.06 |
| r 1,2 Min | 1.5 |
| r 0 Max | 0.6 |
| Basic load ratings KN | |
| dyc Cr | 58.5 |
| stc Cor | 40.5 |
| Designation | |
| Bearing with snap groove | *6213-ZNR |
| snap groove and snap ring | *6213-2ZNR |
| snap ring | SP120 |
| Pu | |
| Pu | 1.73 |
| Principal dimensions mm | |
| d | 65 |
| D | 120 |
| B | 23 |
| Speed ratings rpm | |
| Speed Ratings | 12000 |
| Limiting Speed 1) | 7500 |

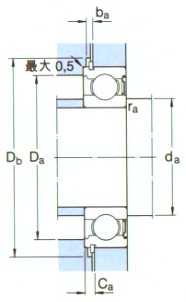

| Abutment and fillet dimensions mm | |
| d a Min | 74 |
| Da Max | 111 |
| D b Min | 131 |
| b a Min | 3.5 |
| Ca Max | 6.88 |
| r a Max | 1.5 |
| Calculation coefficient | |
| k r | 0.025 |
| fo | 15 |
| Mass kg | |
| Weight kg | 0.99 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling SKF-SP120-Deep Groove Ball Bearing，Relevant information of SKF-SP120-Deep Groove Ball Bearing includes： Designation: SP120 d:65 D:120 B:23 Brand:SKF Type:Deep Groove Ball Bearing ，Want to know more about SKF-SP120-Deep Groove Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
SKF-SP120-Deep Groove Ball Bearing is widely used.SKF-SP120-Deep Groove Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of SKF-SP120-Deep Groove Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
