Model：*22216EK
Old Model：
Brand：SKF

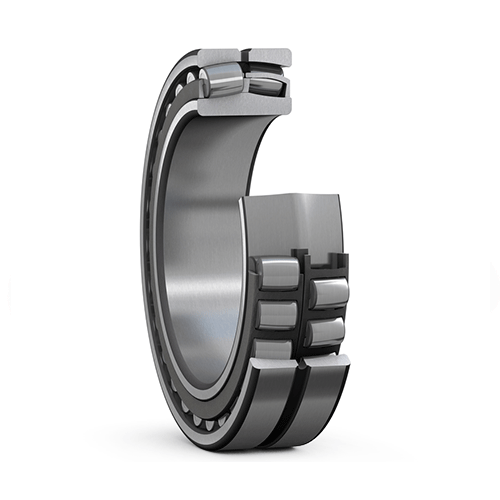

Type：Spherical Roller Bearing
d：75
D：140
B：33
TEL：86-15961781062 Online Service
| Principal dimensions mm | |
| d 1 | 75 |
| D | 140 |
| B | 33 |
| Basic load ratings KN | |
| dyc Cr | 236 |
| stc Cor | 270 |
| Speed ratings rpm | |
| Speed Ratings | 4300 |
| Limiting Speed | 6000 |
| Designation | |
| Bearing | *22216EK |
| Withdrawal sleeves | AH316 |
| Dimansion mm | |
| d 1 | 75 |
| d 2 ～ | 94.7 |
| D1 ～ | 124 |
| B 1 | 48 |
| B 2 1) | 52 |
| G | M90×2 |
| G 1 | 8 |
| b | 5.5 |
| k | 3 |
| r 1,2 Min | 2 |
| Abutment and fillet dimensions mm | |
| d a Max | 91 |
| Da Max | 129 |
| r a Max | 2 |
| Calculation coefficient | |
| e | 0.22 |
| Y1 | 3 |
| Y2 | 4.6 |
| Yo | 2.8 |
| Pu | |
| Pu | 29 |
| WeightBearing+Adapter Sleeve | |
| Bearing+ Withdrawal sleeves | 2.4 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling SKF-*22216EK-Spherical Roller Bearing，Relevant information of SKF-*22216EK-Spherical Roller Bearing includes： Designation: *22216EK d:75 D:140 B:33 Brand:SKF Type:Spherical Roller Bearing ，Want to know more about SKF-*22216EK-Spherical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
SKF-*22216EK-Spherical Roller Bearing is widely used.SKF-*22216EK-Spherical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of SKF-*22216EK-Spherical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
