Model：AOH30/900
Old Model：
Brand：SKF
Type：Spherical Roller Bearing
d：850
D：1280
B：280
TEL：86-15961781062 Online Service

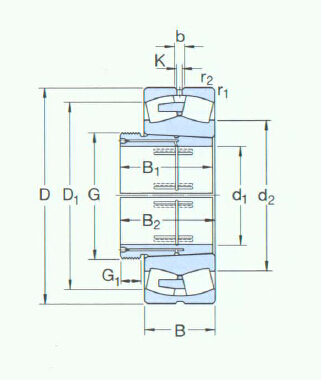

| Principal dimensions mm | |
| d 1 | 850 |
| D | 1280 |
| B | 280 |
| Basic load ratings KN | |
| dyc Cr | 10100 |
| stc Cor | 23200 |
| Speed ratings rpm | |
| Speed Ratings | 220 |
| Limiting Speed | 400 |
| Designation | |
| Bearing | 230/900CAK/W33 |
| Withdrawal sleeves | AOH30/900 |
| Dimansion mm | |
| d 1 | 850 |
| d 2 ～ | 1023 |
| D1 ～ | 1176 |
| B 1 | 335 |
| B 2 1) | 355 |
| G | Tr950×8 |
| G 1 | 55 |
| b | 22.3 |
| k | 12 |
| r 1,2 Min | 7.5 |
| Abutment and fillet dimensions mm | |
| d a Max | 928 |
| Da Max | 1252 |
| r a Max | 6 |
| Calculation coefficient | |
| e | 0.2 |
| Y1 | 3.4 |
| Y2 | 5 |
| Yo | 3.2 |
| Pu | |
| Pu | 1340 |
| WeightBearing+Adapter Sleeve | |
| Bearing+ Withdrawal sleeves | 1450 |
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling SKF-AOH30/900-Spherical Roller Bearing，Relevant information of SKF-AOH30/900-Spherical Roller Bearing includes： Designation: AOH30/900 d:850 D:1280 B:280 Brand:SKF Type:Spherical Roller Bearing ，Want to know more about SKF-AOH30/900-Spherical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
SKF-AOH30/900-Spherical Roller Bearing is widely used.SKF-AOH30/900-Spherical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of SKF-AOH30/900-Spherical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
